Transportation Diorama: Futuristic Car + Display Stand

A six-wheel concept car designed in Rhino for 3D printing, shown as the physical piece on its road plate.

All projects
Industrial design Rhino 3D printing Prototyping

Role

Design and 3D modelling

Course

FOUN 110, Design Thinking and Process, SCAD Atlanta

Date

Oct 2025

Tools

Rhino, 3D printing

01

Brief

Project 2 of FOUN 110 (instructor Kent Knowles, SCAD Atlanta, October 2025) was a transportation diorama: a vehicle and the base it sits on. I worked from concept-car references and made two families of sketches, one with curved forms and one with square forms. Next to the car I sketched the stand, a road plate.

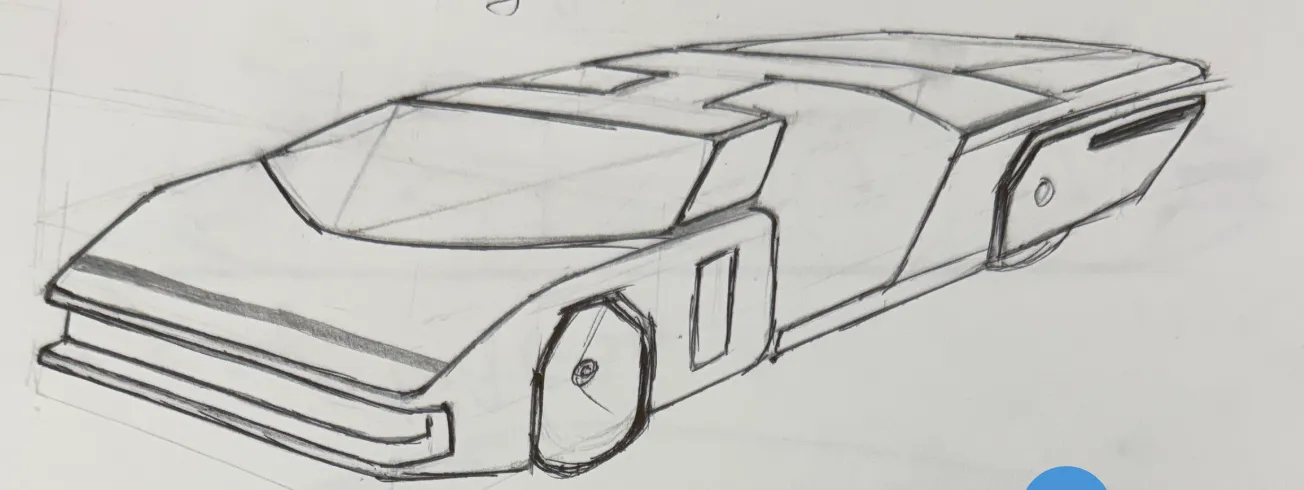

Side-view sketch. Wedge shape, large wheel pods.

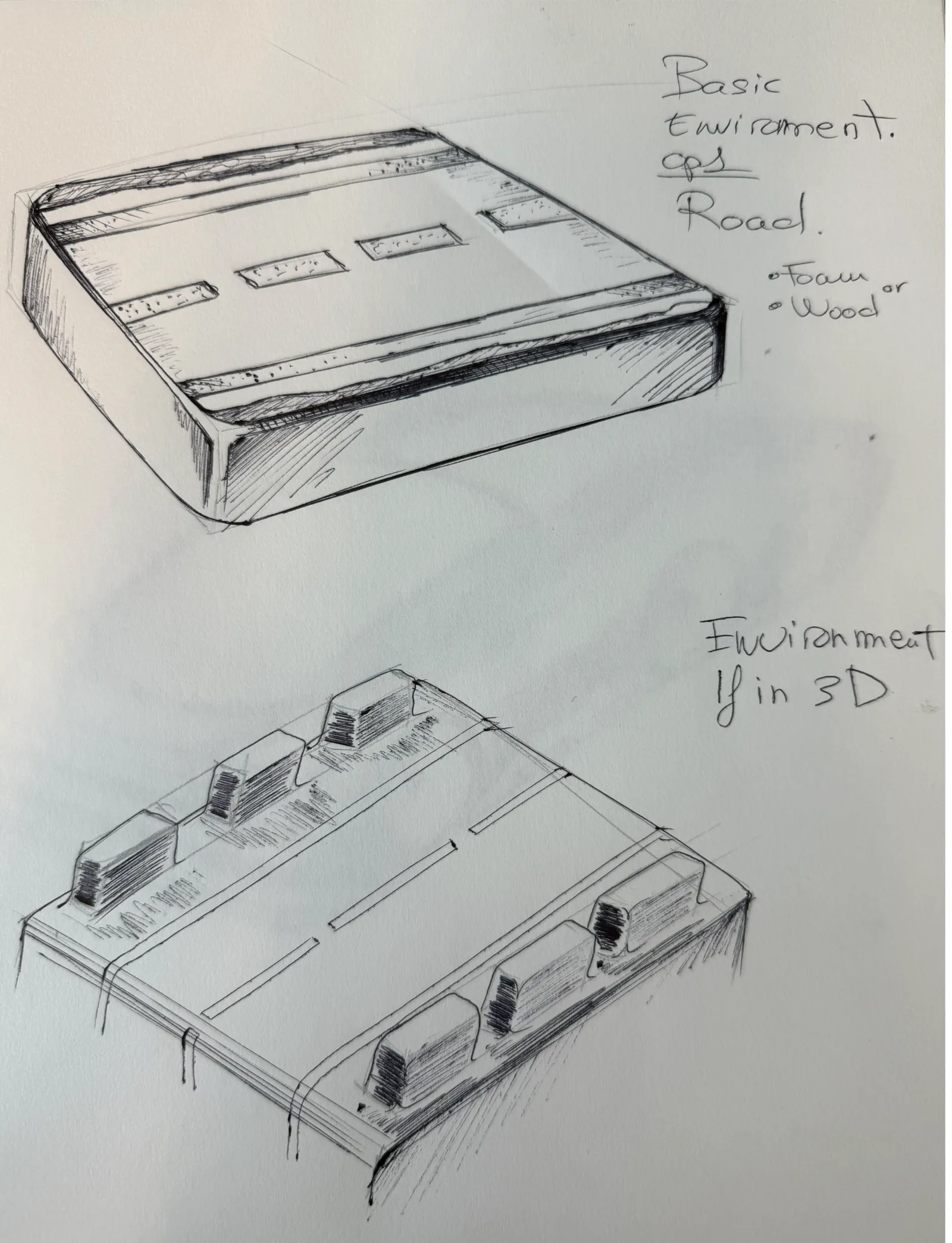

Sketch of the stand: a road plate with raised blocks, noted for foam or wood.

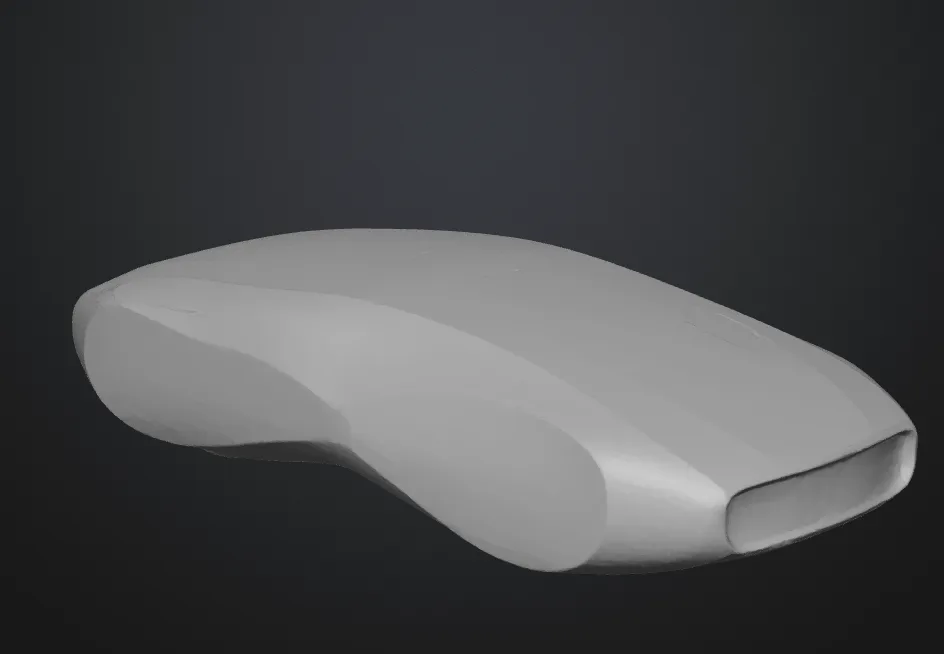

Early clay render of the body on a dark background.

02

Process: Rhino for 3D printing

My own note in the process book says it: "Finally designing in 3D to 3D print with Rhino." So I split the car into a kit of parts. Body shell, chassis, six tyres, six rim hubs, a base plate and separate red accent strips. The body carries six vent holes and a slot, and the car runs on three axles with a diffuser-style underbody.

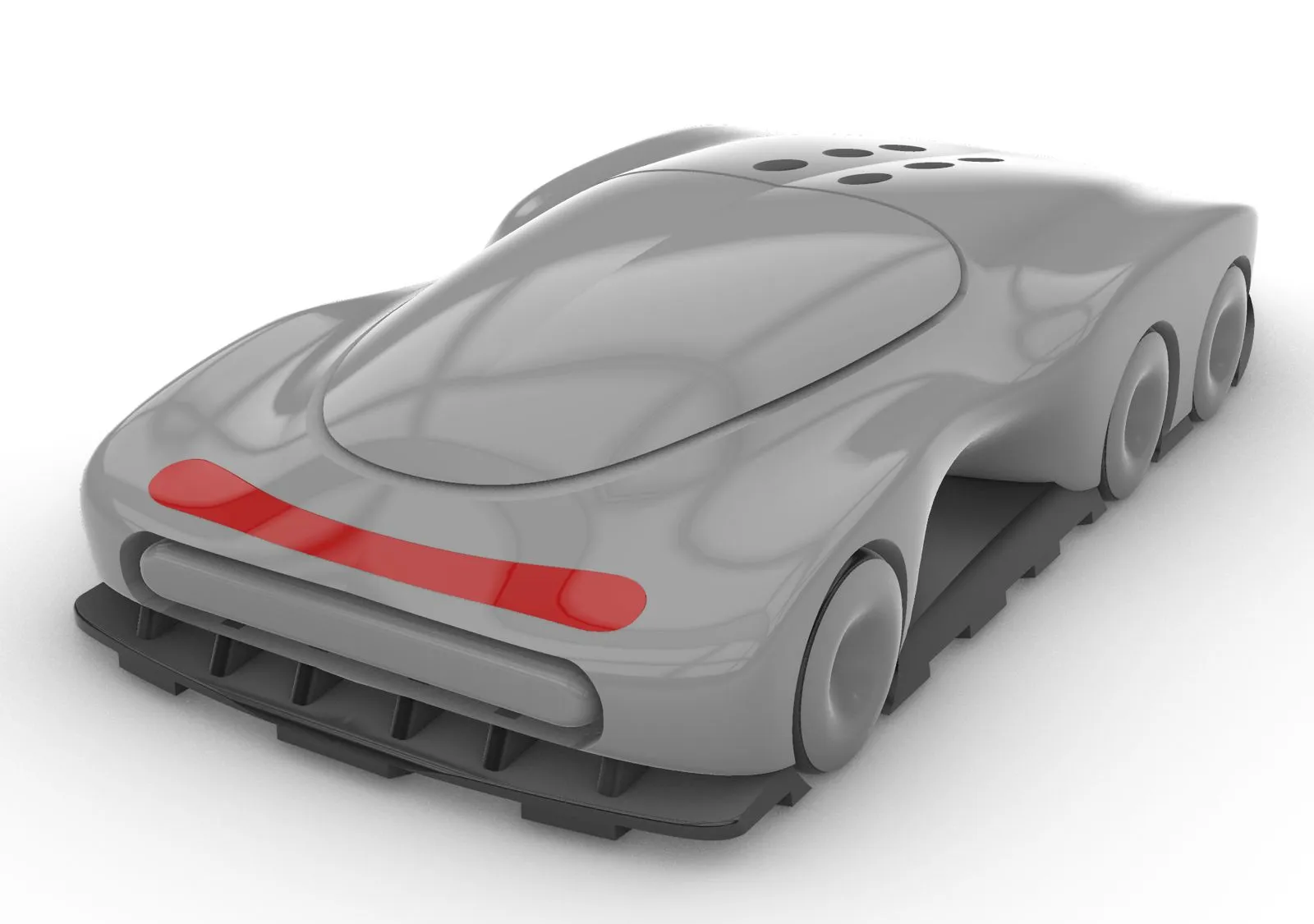

Rhino render, rear three-quarter.

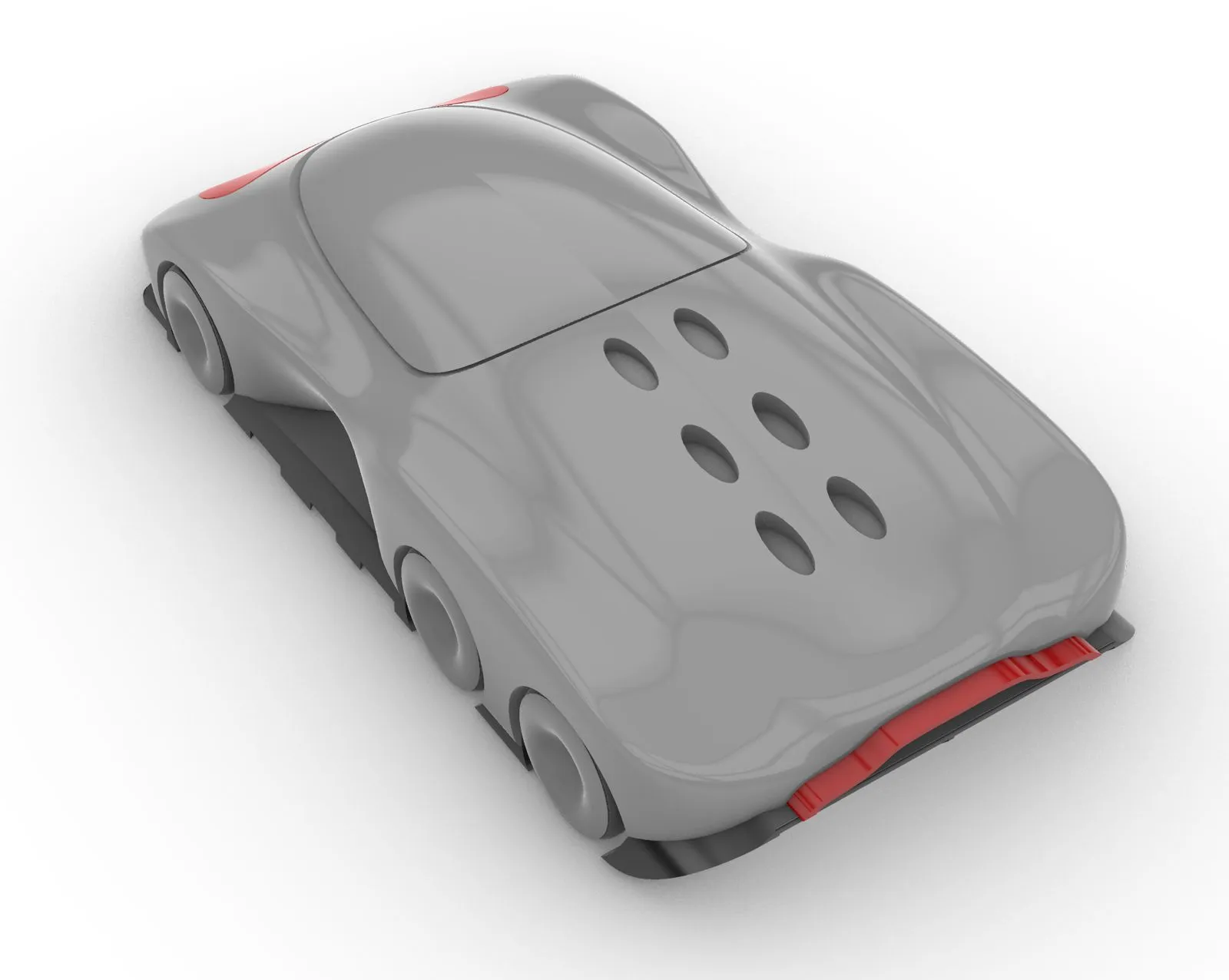

Rhino render from above. Six vent holes in the body.

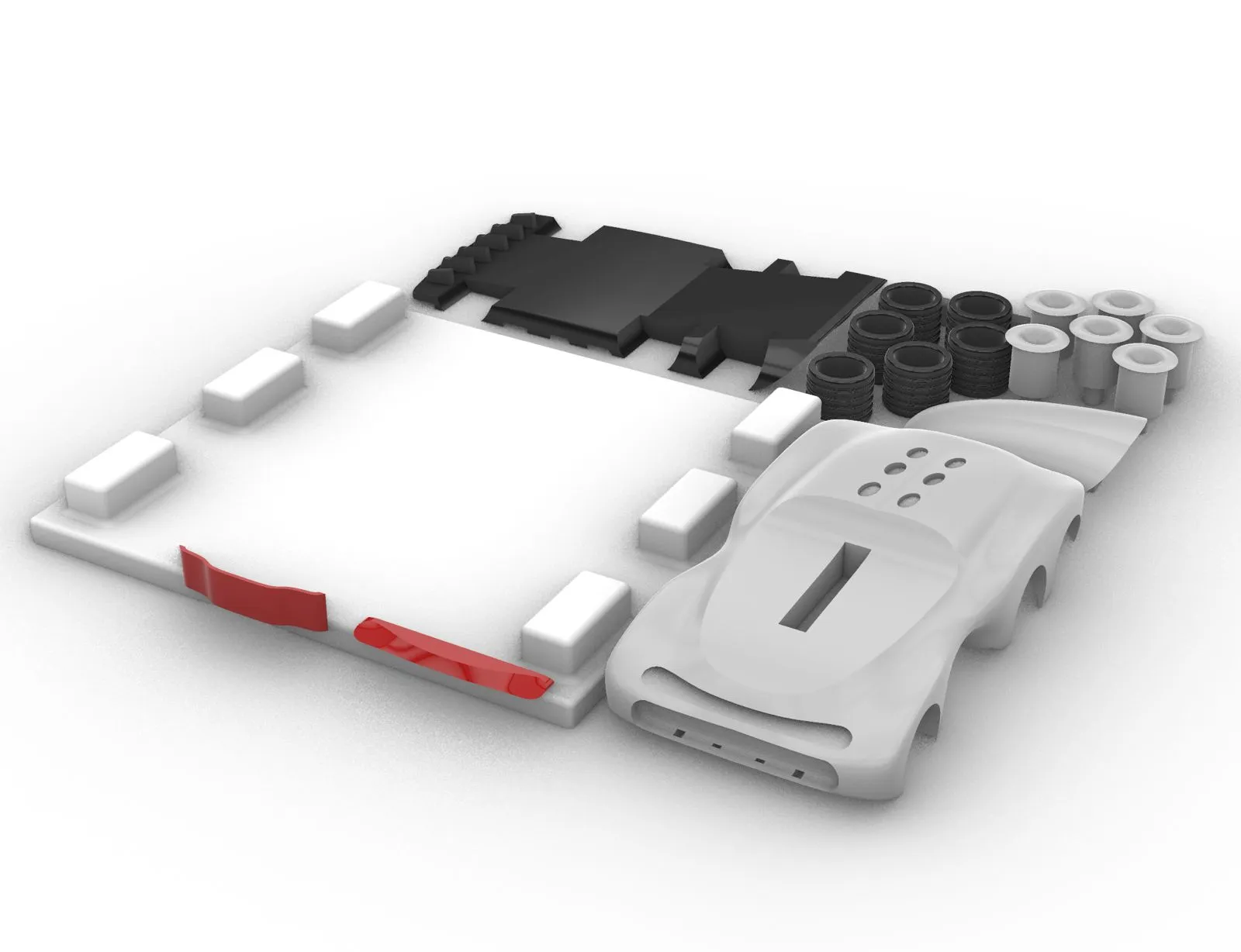

The part kit in Rhino: base plate, chassis, tyres, rim hubs and body shell.

03

Outcome

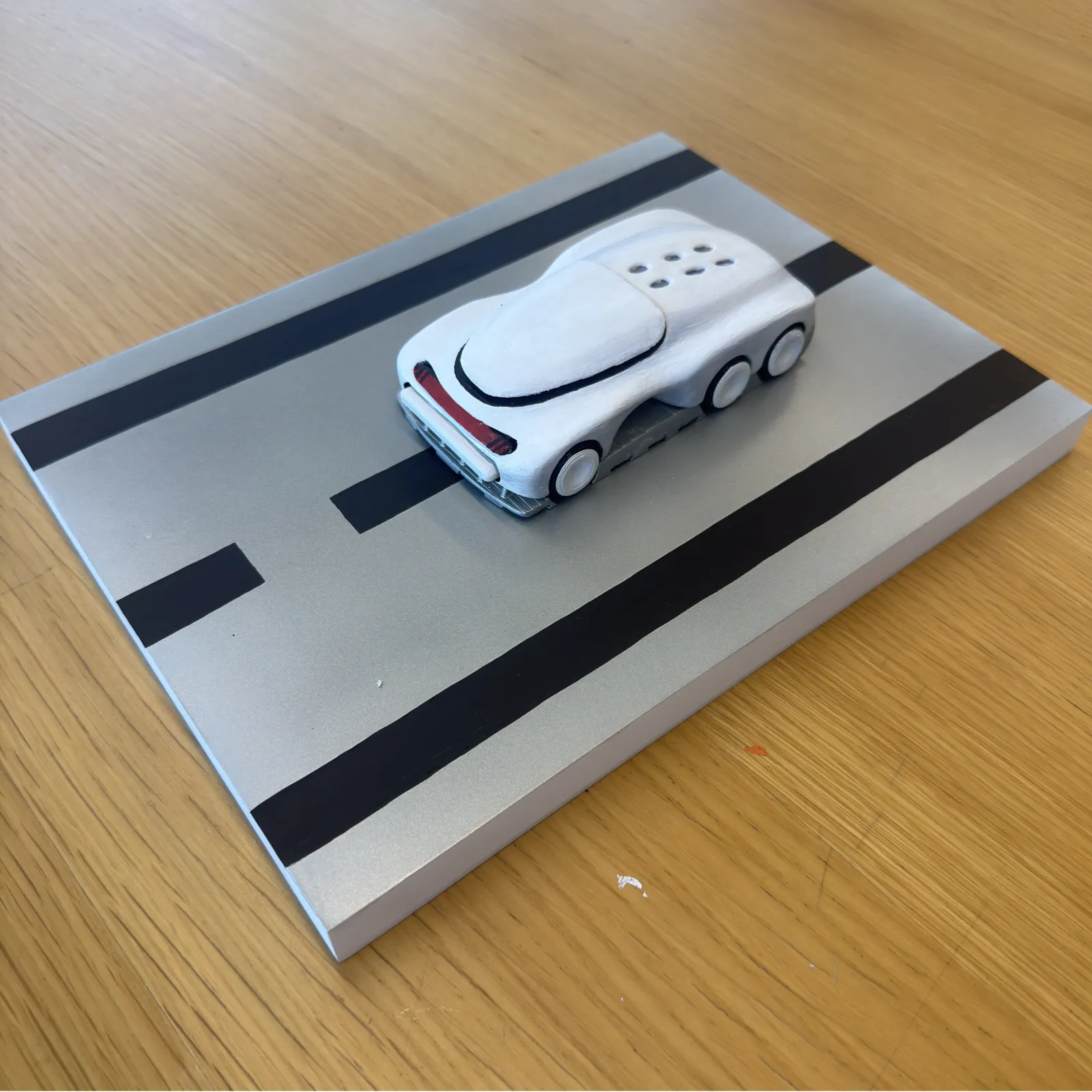

The printed car sits on a painted road plate with black lane stripes. The underside shot shows the chassis with its layered surface and six black tyres. The part-kit render and the physical car are the same design, only one is on screen and the other is on the table. A short AI-animated clip puts the design in a city.

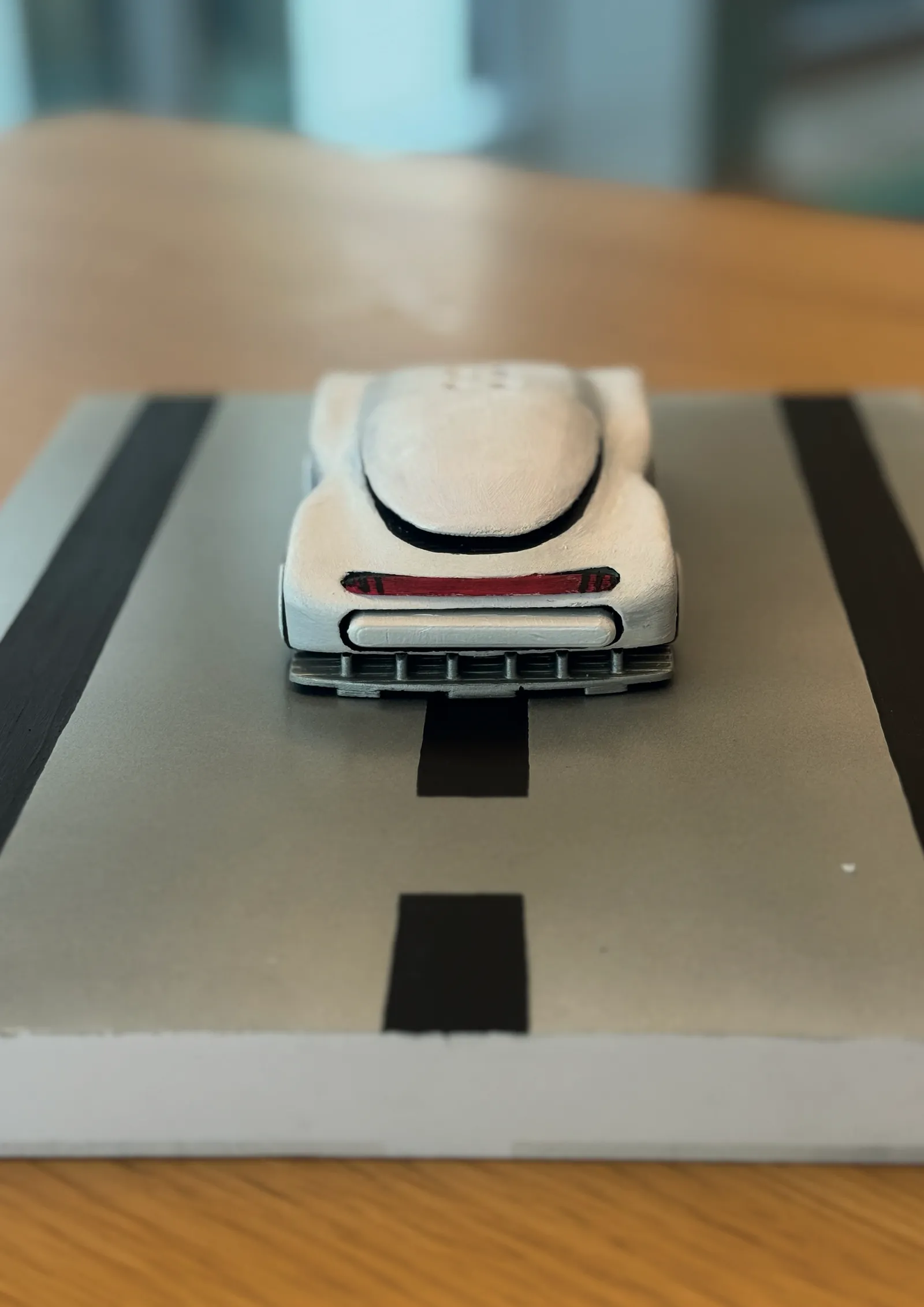

Printed car from behind, with red light strip and diffuser.

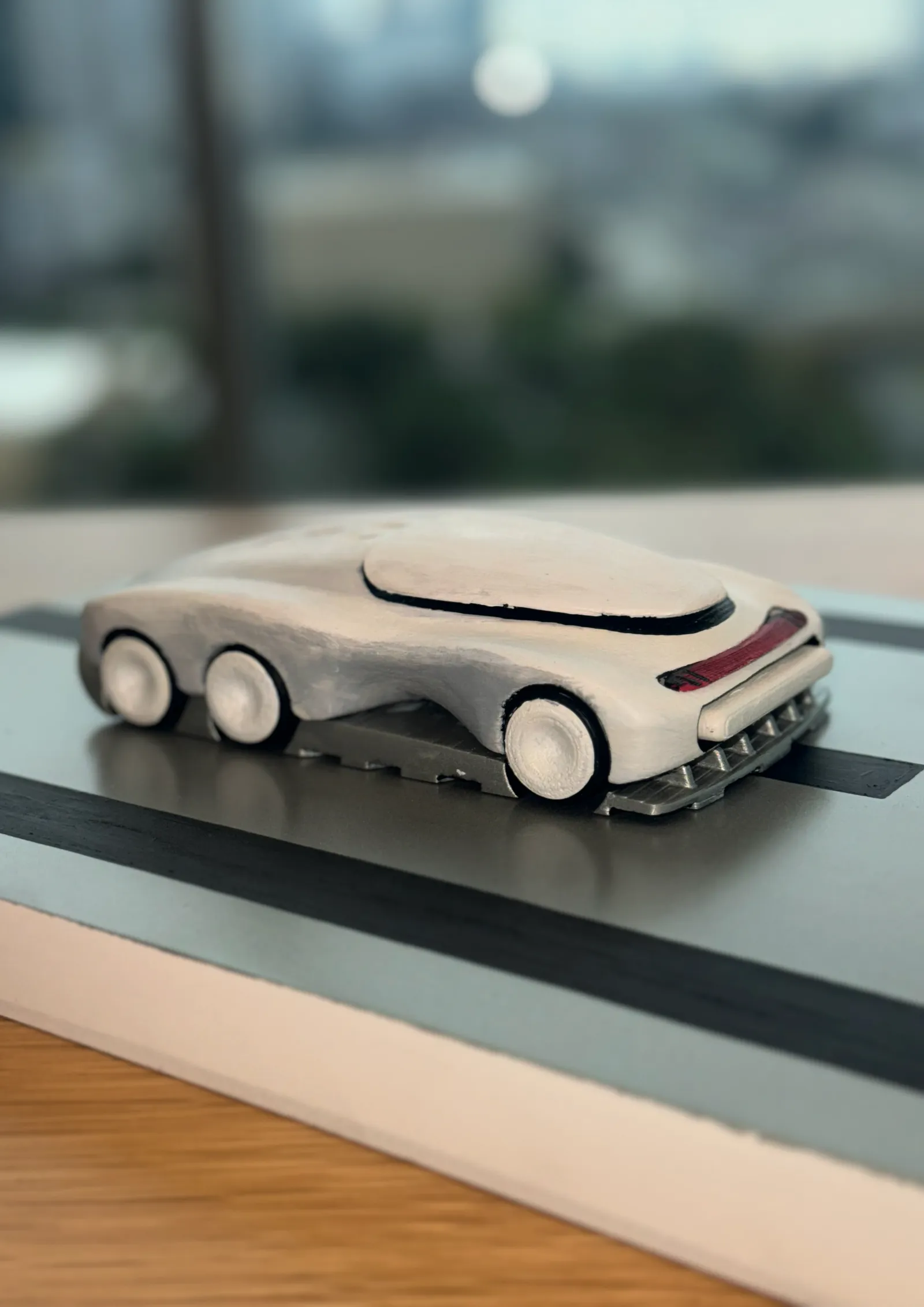

Low side view. Three axles on the road plate.

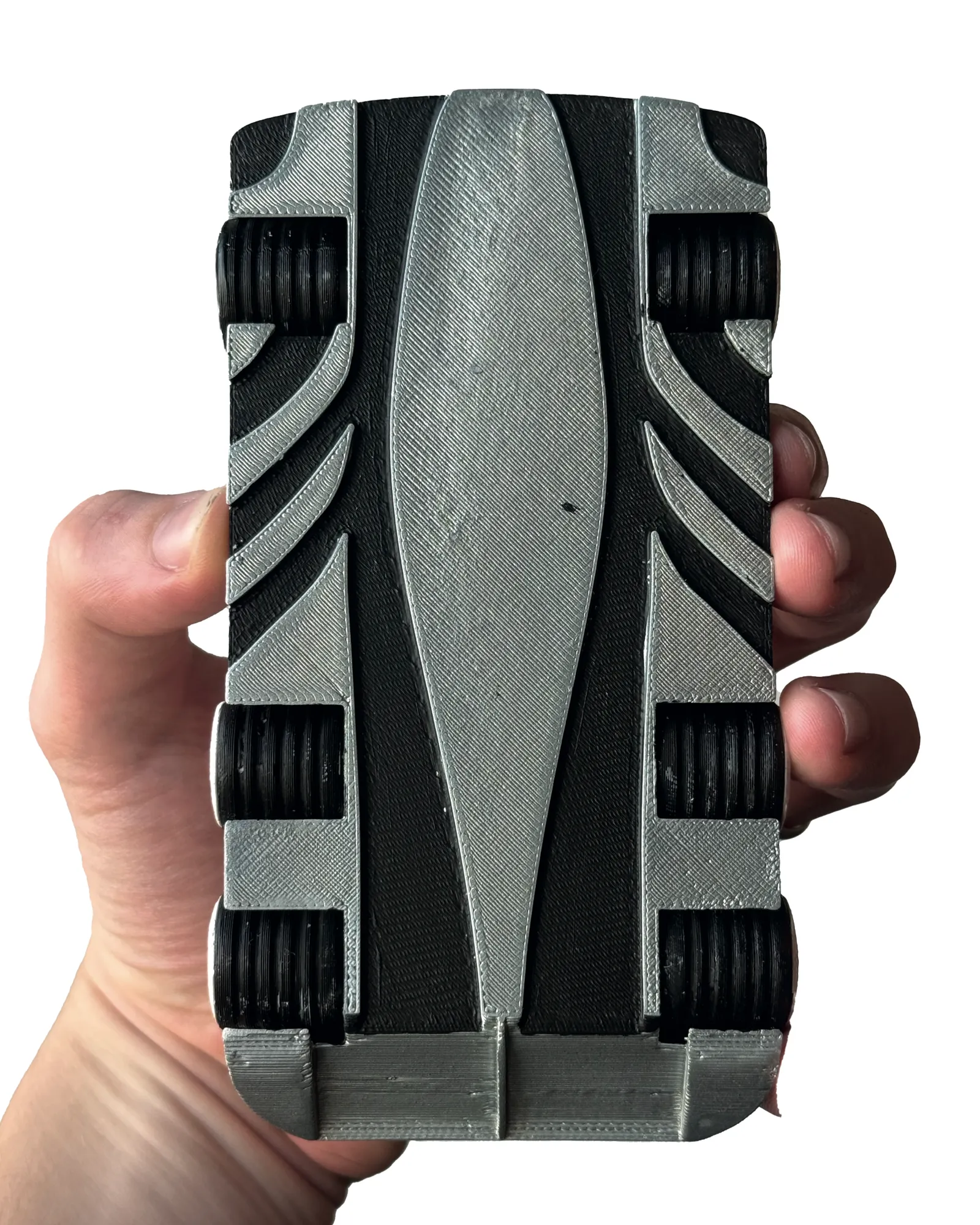

Underside: chassis and six tyres.
AI-animated from my design: the car drives through a futuristic city. Made with Google Veo; the city is not part of my project.

04

What this shows

Part split for fabrication: deciding where one object becomes several, so each piece can be made and then put together. It also shows the full path from sketch to CAD to a physical model. Tolerances and fits are not documented here.
